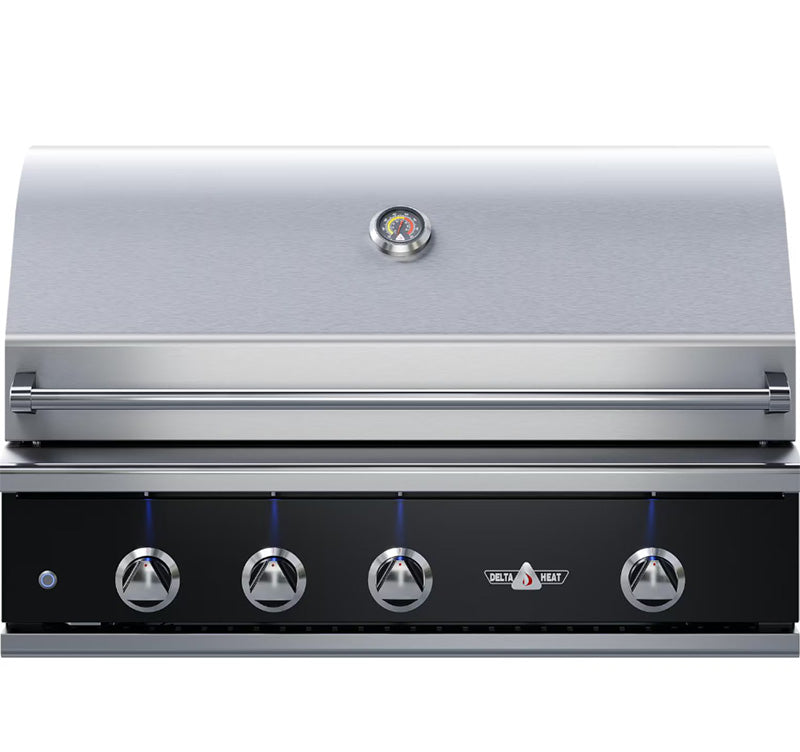

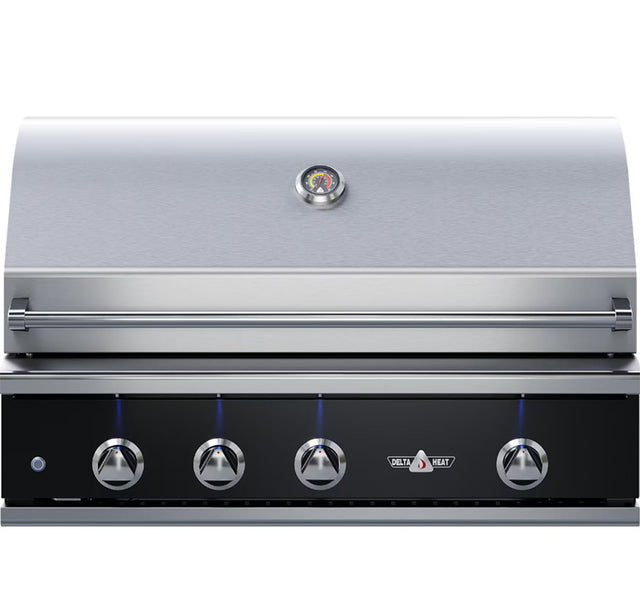

Delta Heat 38" Built In Gas Grill With Color Panel DHBQ38(R/RS)-(K/W)(L/N)

Model: DHBQ38R-KN (Black Control Panel)

The Delta Heat 38″ built-in gas grill is a premium, American-made outdoor cooking appliance designed for seamless integration into custom outdoor kitchens. Constructed from high-grade stainless steel and engineered for performance and durability, this grill delivers powerful heat, precise control, and long-term reliability.

Equipped with three high-output stainless steel burners and an integrated infrared rotisserie system, the DHBQ38R-KN provides exceptional grilling versatility — from high-heat searing to slow, even rotisserie cooking. Interior halogen lighting and LED-illuminated control knobs enhance visibility and usability during evening operation.

---

Key Features

• Three stainless steel U-burners for consistent, even heat

• Integrated infrared rotisserie burner with motor

• Interior halogen cooking lights

• LED-illuminated control knobs

• Heavy-duty stainless steel construction

• Made in the USA

---

Fuel & Utilities

• Fuel Type: Natural Gas

• Gas Connection: 1/2 inch NPT

• Electrical Requirement:

  • 120V / 60Hz outlet required

  • Powers rotisserie motor and interior lighting

  • GFCI outlet recommended

---

BTU Output

• Main Burners: Approx. 75,000 BTU total

• Infrared Rotisserie Burner: Approx. 18,000 BTU

• Total Output: Approx. 93,000 BTU

---

Cooking Area

• Primary Grilling Area: Approx. 525 sq in

• Total Cooking Area (including warming rack): Approx. 720 sq in

---

Cutout & Installation Dimensions

Built-In Cutout Dimensions:

• Width: 37 1/4 inches

• Depth: 23 inches

• Height: 10 1/4 inches

Overall Grill Dimensions (approximate):

• Width: 38 inches

• Depth: 25 inches

• Height: 24 inches

---

Installation Notes

• Grill must be installed into non-combustible construction, or an approved insulated jacket must be used.

• Adequate ventilation openings are required per local code and manufacturer installation guidelines.

• Clearance requirements above and behind the grill must be followed per Delta Heat installation manual.

• Gas supply and electrical outlet should be accessible from inside the island cavity.

---

Included Components

• Built-in grill head

• Infrared rotisserie burner

• Rotisserie motor, spit rod, and forks

• Interior halogen lighting system

• Stainless steel warming rack

---

Ideal Applications

• Custom outdoor kitchens

• Masonry or metal-framed islands

• High-end residential outdoor cooking spaces
